reef field note / CS-02
A removable mineral tile with the surface texture, refuge, and tracking needed to learn whether more larvae make it through the first difficult months.
two working scales
The idea stretches from coral larvae and tiny settlement cues to field equipment that has to be tagged, inspected, and removed when it stops helping.
scope line
Scaffold geometry may improve the first hours and months after settlement. It cannot stop ocean warming, prevent bleaching, repair water quality, or replace genetic diversity and climate action.
Restoration practice, millimeter-scale topography, boundary-layer flow, crustose coralline algae-associated cues, and reef microbiomes can influence recruitment and early coral health (NOAA, n.d.; Levenstein et al., 2022; Gysbers et al., 2024; Ritson-Williams et al., 2009; Peixoto et al., 2017).
The proposal integrates a mineral-compatible material, ridges and refuges, a temporary screened cue layer, and retrieval-aware monitoring.
A geometry useful for one coral or flow regime may fail elsewhere. Biofilms may drift, algae may dominate, sediment may accumulate, and modules may become unstable.
A candidate must outperform flat and existing restoration controls without harmful leaching, disease association, instability, or reduced surrounding biodiversity.
tile anatomy
Novelty is not assumed merely because several known restoration ideas are combined. The proposal must demonstrate a measurable benefit over simpler alternatives.
Candidate calcium-carbonate, aragonite-like ceramic, or reef-safe terracotta formulations would first be compared for pH effects, leaching, dissolution, abrasion, roughness, and manufacturing repeatability (NOAA, n.d.).
Ridges, grooves, pores, and sheltered edges are proposed to influence boundary-layer flow and provide attachment locations. Their effect must be compared against flat material under realistic oscillatory flow (Levenstein et al., 2022; Gysbers et al., 2024).
Locally appropriate, pathogen-screened crustose coralline algae-associated cues or biofilms could be tested against untreated controls. They are not assumed to remain beneficial or stable (Ritson-Williams et al., 2009; Peixoto et al., 2017).
Tagged modules, diver surveys, photogrammetry, survival scoring, storm checks, and predefined retrieval triggers would prevent a failed prototype from becoming permanent debris (NOAA, n.d.; Zhong et al., 2025).
field scorecard
These thresholds are proposed for early design screening. They are not observed outcomes and must be adapted to the selected species, site, and permitting framework.
| Measure | Minimum signal for continued development | Stop or redesign condition |
|---|---|---|
| Material compatibility | No biologically meaningful pH shift or harmful leachate effect relative to a validated restoration-material control. | Acute toxicity, unstable dissolution, sharp fragmentation, or persistent harmful residue. |
| Larval settlement | At least twice the settlement density of a flat same-material control in blinded replicated trials. | No repeatable improvement, or improvement appears only under one artificial flow condition. |
| Early survival | At least 25% higher juvenile survival than the flat control at the pre-registered nursery endpoint. | Settlement increases but subsequent survival, growth, or tissue condition declines. |
| Fouling and sediment | Available settlement area remains equal to or greater than the best existing control through the pilot interval. | Geometry traps sediment, accelerates algal dominance, or blocks water exchange. |
| Ecological safety | No increase in disease signs, harmful microbial profiles, or injury to adjacent reef organisms. | Disease association, invasive colonization, or measurable harm appears. |
| Physical stability | No displacement or fracture in site-calibrated surge tests; every unit remains retrievable. | Module movement, entanglement risk, destructive anchoring, or failed retrieval. |
retrieval triggers
Site choice and environmental permission come before field deployment. Every control has an associated removal or redesign trigger.
Require seawater stability, abrasion, dissolution, and ecotoxicity screening before larval trials.
Use species- and site-appropriate conditioning; reject modules with harmful or non-local microbial drift.
Use genetically diverse cohorts and quarantine-style health screening rather than scaling one convenient genotype.
Settlement support is not protection against heat waves and must not substitute for water-quality or climate action.
deployment ladder
Each phase compares against a flat same-material control and an appropriate existing restoration method.
Test pH, leaching, dissolution, abrasion, roughness, breakage, and ecotoxicity before introducing coral.
Compare flat, ridged, grooved, porous, and refuge geometries under site-relevant oscillatory flow and sediment.
Run untreated, locally conditioned, and cue-treated surfaces with blinded settlement and metamorphosis scoring.
Track juvenile survival, growth, tissue condition, fouling, sediment, and microbial change through a fixed endpoint.
Deploy a small number of tagged, retrievable modules at a degraded site with matched controls.
Scale only after multi-season evidence of survival benefit, physical stability, retrieval, and no measurable local harm.
reading log
I label preprints. These papers support separate mechanisms and monitoring methods; none of them proves that my full Coral-Suture idea works.

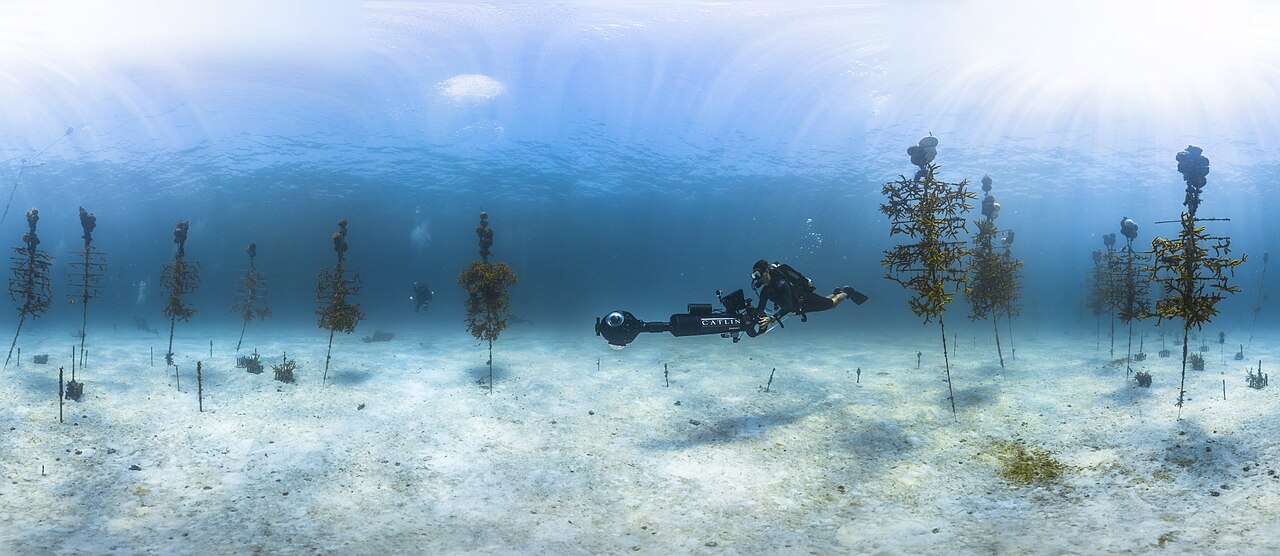

visual note: the mechanism diagram is my own HTML/CSS sketch. the two photos are real reference images; full credits and licenses are listed above and in IMAGE_CREDITS.md.
