living-material lab note / TM-04
One sealed material coupon. One sacrificial food reserve. One short pulse of fungal growth around a defect - and a hard requirement that growth ends there.
sample views

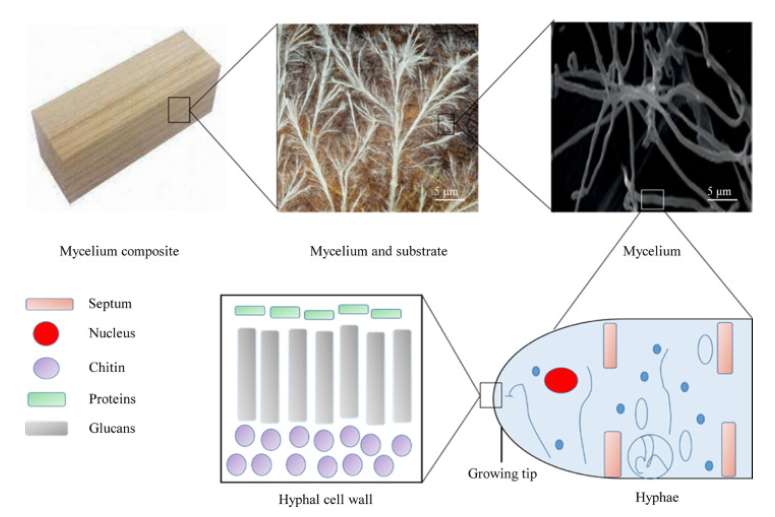

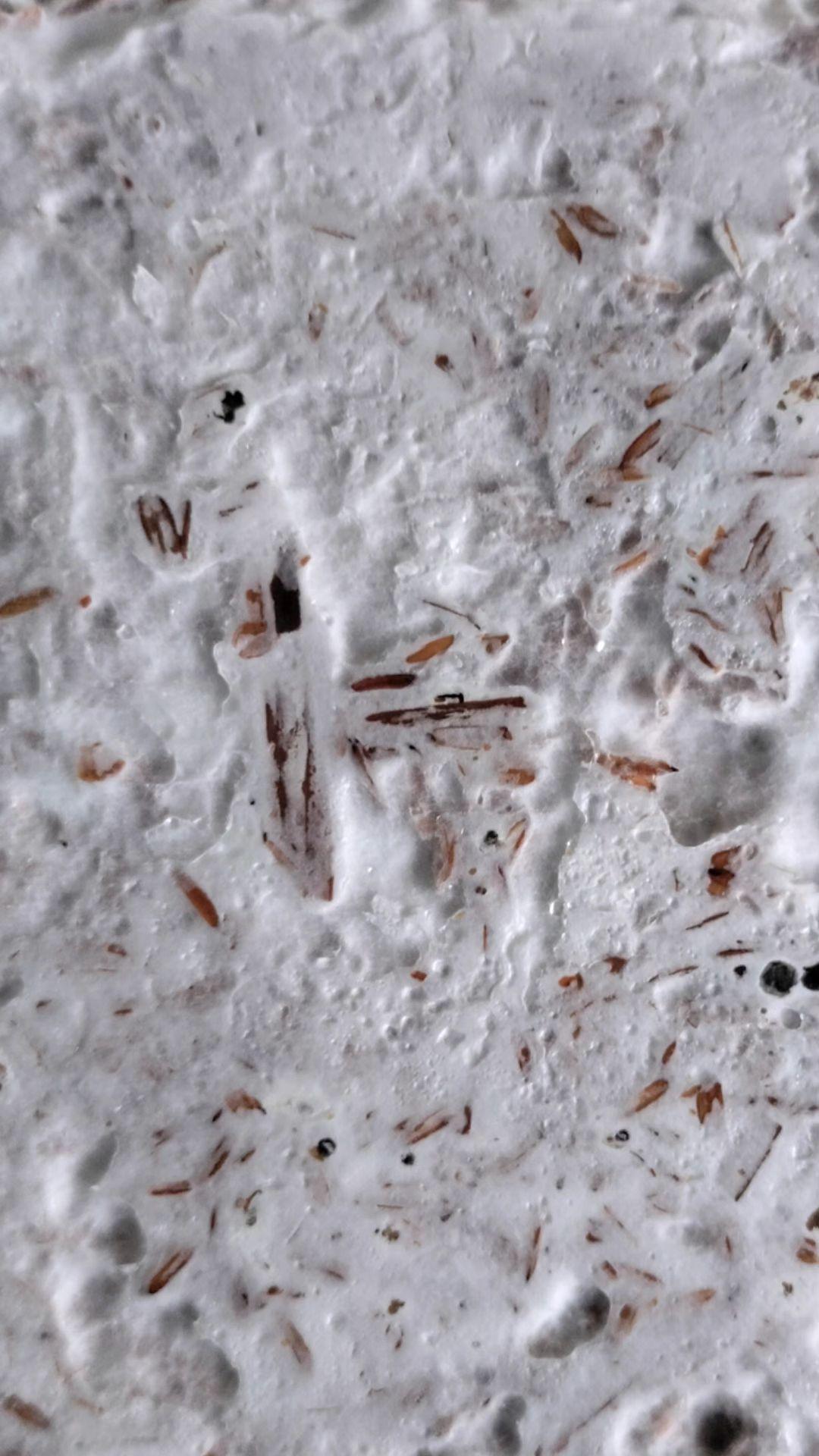

These views connect the visible composite surface to the hyphal network underneath it. That gap between material scale and cell scale is where most of my control problem sits.
central contradiction
The organism needs moisture and nutrients to act, while moisture and biological activity can also accelerate decay. Activation, host protection, and termination must therefore be demonstrated as one coupled control problem.
Species, substrate, growth conditions, density, moisture, and processing strongly influence mycelium-composite properties (Appels et al., 2019; Elsacker et al., 2019; Attias et al., 2020; Shen et al., 2023). Fungal development and cell-wall biology provide additional control context (Bowman & Free, 2006; Bayram et al., 2008).
The proposal embeds a finite nutrient source and uses local damage-associated conditions to restrict temporary hyphal bonding around a small defect.
No mechanism has yet been selected that reliably distinguishes useful repair conditions, prevents wood consumption, preserves fungal viability, and terminates growth.
A contained coupon study must show repeatable activation only at defects, no extra substrate mass loss, partial mechanical benefit, no reproductive escape, and complete termination.
coupon anatomy
The realistic first target is a replaceable, non-load-bearing panel or insulation element - not beams, occupied structural timber, or autonomous building-scale deployment.
Mechanical separation, local moisture, and release from a damaged nutrient capsule could form a simpler early trigger than assuming the fungus can accurately interpret an abstract “crack signal.”
A replaceable hydrogel, biodegradable capsule, or sacrificial embedded layer would provide the intended carbon and nutrients. Host mass loss must be measured directly, not inferred from visual appearance.
Hyphal bridging and local densification might reduce crack opening or restore some stiffness in a low-risk element. The project makes no concrete-strength or full-recovery claim (Appels et al., 2019; Elsacker et al., 2019; Attias et al., 2020; Shen et al., 2023).
Chitin-targeting defense is biologically complicated because fungal walls also contain chitin (Bowman & Free, 2006; Veliz et al., 2017). It should remain a later module; the first proof problem is safe localized repair and reliable growth termination.
stop conditions
These gates describe a small sealed-coupon experiment. They are not performance claims or specifications for inhabited structures.
| Measure | Minimum signal for continued development | Stop or redesign condition |
|---|---|---|
| Localization | At least 90% of new fungal biomass remains within the pre-registered repair boundary. | Growth reaches intact host zones, fasteners, coatings, or neighboring coupons. |
| Host protection | No statistically detectable extra host-material mass loss versus a sterile damaged control. | Evidence of lignocellulose consumption, softening, decay chemistry, or moisture retention. |
| Repair signal | At least 20% recovery of the pre-registered stiffness or crack-opening measure versus the damaged untreated control. | Visual filling occurs without repeatable mechanical benefit. |
| Termination | No renewed growth after nutrient exhaustion across three wet–dry challenge cycles. | Growth restarts without a new sacrificial nutrient input. |
| Reproductive containment | No detectable spores or reproductive structures outside the sealed matrix during and after challenge testing. | Any reproducible reproductive escape or transfer to an untreated substrate. |
| Durability | Retain at least 80% of the observed repair benefit after the pre-registered humidity and aging cycle. | The repaired region collapses, retains damaging moisture, or becomes more brittle than the control. |
escape routes
Containment cannot depend on one genetic switch or on the expectation that a metabolically costly engineered behavior remains stable.
Limit early studies to retrievable non-load-bearing coupons and panels with visible inspection access.
Require an engineered repair-zone nutrient source and reject systems that obtain useful energy by consuming the host.
Combine developmental suppression, environmental dependence, physical sealing, reproductive monitoring, and disposal controls (Bayram et al., 2008).
Remove the component if growth crosses its boundary, host mass declines, moisture persists, reproductive structures appear, or repair output drifts.
bench sequence
Defense enzymes and genetically complex sensing stay out of scope until local growth, host protection, termination, and material benefit are independently demonstrated.
Compare candidate non-pathogenic strains and inert/sacrificial feedstocks for bonding, host mass loss, moisture, and reproducibility.
Measure growth with and without the sacrificial nutrient source and reject candidates that continue on the host material.
Use sealed coupons with standardized defects and blinded mapping of fungal biomass beyond the repair boundary.
Compare stiffness, crack opening, adhesion, humidity response, and aging against damaged and conventional-repair controls.
Apply repeated wet–dry cycles, temperature changes, adjacent untreated substrates, and reproductive monitoring.
Only after repair gates pass, study whether a localized defensive response adds benefit without self-damage or non-target effects.
lab reading
These papers support separate biology and material ideas. None of them demonstrates my proposed repair system in a finished structure.
visual note: the mechanism diagram is my own HTML/CSS sketch. the two reference images are credited above and in IMAGE_CREDITS.md.
